Potassium titanium fluoride (K₂TiF₆) in place of titanium fluoride (TiF₄ or related forms like H₂TiF₆) in a surface activation or conditioning solution prior to zinc phosphating. In fact, potassium titanium fluoride is often preferred because:
It is more stable in aqueous solution.

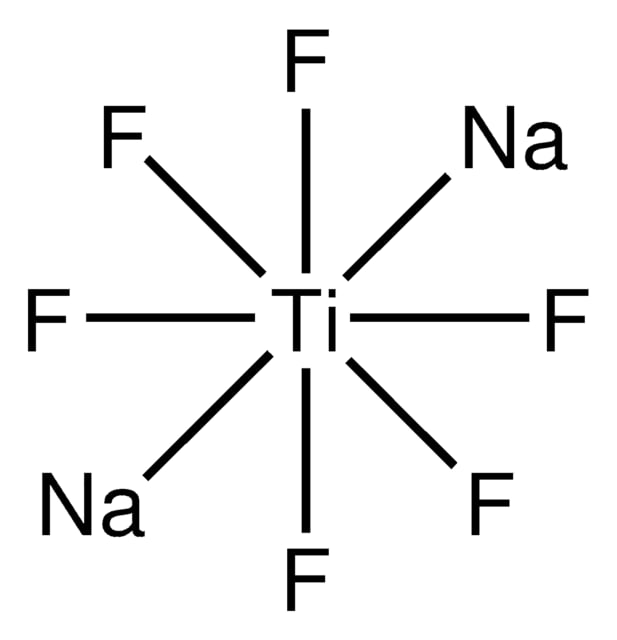

It provides a consistent source of hexafluorotitanate ions (TiF₆²⁻), which are the active species.
It is easier to handle and store compared to liquid forms of titanium fluoride or hydrofluorotitanic acid.
🔬 Updated Surface Activation / Conditioning Formula (Prior to Zinc Phosphating)
Here’s a general-purpose, industry-standard conditioning formula using K₂TiF₆:
Component
Concentration
Potassium Titanium Fluoride (K₂TiF₆)
0.5 – 1.5 g/L
Wetting Agent (non-ionic surfactant)
0.05 – 0.1 g/L
pH Adjuster (if needed)
Adjust to pH 4.0 – 5.5
Deionized Water
Balance to 1 liter
🧪 Operating Conditions
Bath Temperature: Room temp (20–30°C)
Immersion Time: 30 – 60 seconds
Agitation: Mild, to ensure uniform activation
Follow-up: Rinse lightly before phosphating
Notes
The key function of K₂TiF₆ is to create a fine, uniform crystalline activation layer that serves as nucleation sites for the zinc phosphate coating.
If you’re making the switch from H₂TiF₆ or TiF₄, you may need minor pH and solubility adjustments, but overall performance will be comparable or better.
🧾 Surface Activation / Conditioning Formula (Pre-Phosphating)
Purpose: Prepares metal surfaces (mainly steel, galvanized steel, and aluminum) by promoting uniform zinc phosphate coating adhesion and fine crystal structure.
📌 Formulation – per 1000 L of bath
Component
Amount (grams)
Function
Potassium Titanium Fluoride (K₂TiF₆)
500 – 1500
Provides TiF₆²⁻ ions for nucleation sites
Non-Ionic Surfactant (e.g., Triton X-100)
50 – 100
Improves wetting, removes surface tension
pH Adjuster (e.g., Diluted HNO₃ or NaOH)
As required
To adjust pH to 4.5 ± 0.5
Deionized Water
To make up to 1000 L
Diluent
⚙️ Operating Conditions
Parameter
Value
Bath pH
4.0 – 5.0
Temperature
20 – 30°C
Immersion Time
30 – 60 seconds
Agitation
Mild, continuous
Rinse
Light DI water rinse before phosphating
🔧 Substrate Compatibility
Substrate Type
Compatibility
Notes
Mild Steel (CRS)
✅ Excellent
Promotes fine grain phosphate coating
Galvanized Steel
✅ Very Good
Works well if pH is controlled properly; avoids white smut formation
Aluminum
⚠️ Conditional
Can be used, but needs additional fluoride complexing agents for better adhesion
Zinc-Aluminum Alloys
✅ Good
Generally acceptable with slightly higher TiF₆²⁻ concentration
✅ Advantages of Using K₂TiF₆
Stable powder form – easier to store and mix
Offers better control over bath stability and longevity
Produces uniform microcrystalline phosphate layers (especially useful in automotive and appliance finishing)
🧾 Technical Data Sheet (TDS) – Surface Activation Bath Using Potassium Titanium Fluoride
📌 1. Product Description
Aqueous pre-treatment conditioning solution formulated with potassium titanium fluoride (K₂TiF₆), designed to enhance nucleation for fine crystalline zinc phosphate coatings. Suitable for mild steel, galvanized steel, and zinc-aluminum alloys.
🧪 2. Formulation – per 1000 L Bath
Raw Material
Amount
Function
Potassium Titanium Fluoride (K₂TiF₆)
0.5 – 1.5 kg
Source of TiF₆²⁻ activator
Non-Ionic Surfactant (e.g. Triton X-100)
50 – 100 g
Wetting agent
pH Adjuster (e.g. HNO₃ / NaOH)
As required
Maintain pH between 4.0 and 5.0
Deionized Water
To 1000 L
Solvent/base medium

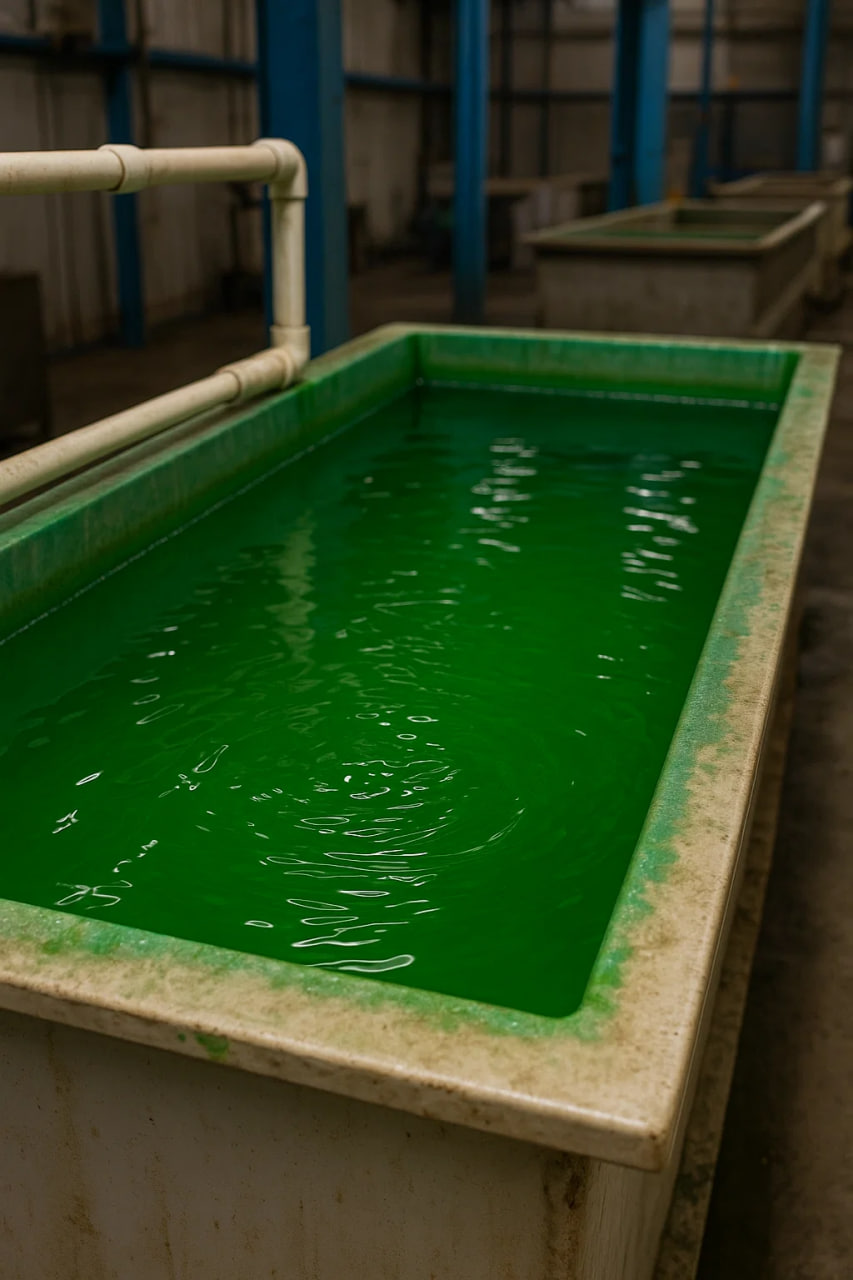

⚙️ 3. Bath Preparation Instructions
Fill tank with ~900 L of deionized water.
With agitation, add potassium titanium fluoride slowly until fully dissolved.
Add non-ionic surfactant and stir gently.
Check and adjust pH to 4.0 – 5.0 using dilute HNO₃ (acid) or NaOH (alkali).
Top up to 1000 L with DI water.
⚠️ Do not use hard water. Calcium/Magnesium can precipitate Ti species.
📏 4. Operating Conditions
Parameter
Target Value
Temperature
20 – 30°C (ambient)
Immersion Time
30 – 60 seconds
Agitation
Mild mechanical preferred
Post-treatment rinse
Light DI rinse before phosphate coating
🧼 5. Bath Maintenance Schedule
Check
Frequency
Action
pH
Daily
Adjust using dilute acid or alkali
TiF₆²⁻ Concentration
Weekly
Titrate using fluoride test or spectrophotometry
Sludge build-up
Weekly
Remove solids from tank bottom
Water level / volume
Daily
Top up with DI water
Surfactant activity
Monthly
Optional foam or surface tension test
🧪 6. Quality Control Testing
A. Strip Test (Visual Confirmation)
Use degreased CR steel panels
Dip in bath for 30 seconds
Rinse lightly
Proceed to zinc phosphating → inspect phosphate crystal structure
